Migrate From Google Cloud Next Generation Firewall (NGFW) to Cloud Firewalls

Google Cloud Next Generation Firewall (NGFW) is a network-level firewall that allows administrators to define granular rules based on IP ranges, ports, protocols, and service accounts. NGFW supports threat intelligence-based filtering and hierarchical policy enforcement, offering centralized control for securing workloads across projects and regions.

Cloud Firewalls on Akamai Cloud is a network-level firewall service that lets users control traffic for Linode instances and NodeBalancers, Akamai Cloud’s load balancing service. Cloud Firewalls support inbound and outbound traffic management for Linode instances and inbound traffic for NodeBalancers. They operate at Layers 3 and 4 of the OSI model (see diagram below), providing IP, protocol, and port filtering.

This guide includes steps on how to migrate a basic security setup from Google Cloud NGFW to Cloud Firewalls. It covers planning, documenting your configuration, creating equivalent rules with Cloud Firewalls, and testing results to ensure network security after migration.

Feature Comparison

Before beginning the migration process between service providers, it’s important to understand the capabilities and specifications of both Google Cloud NGFW and Cloud Firewalls. This can help optimize your results by identifying which rules can be migrated directly and which may require additional configuration.

Features of Google Cloud NGFW

Google Cloud NGFW filters traffic at the VPC network level. It supports rules based on IP ranges, ports, protocols, and targets (e.g. network tags or service accounts). NGFW also enables centralized firewall policy management across projects, including threat intelligence-based blocking and hierarchical enforcement for consistent, scalable security controls.

Features of Cloud Firewalls

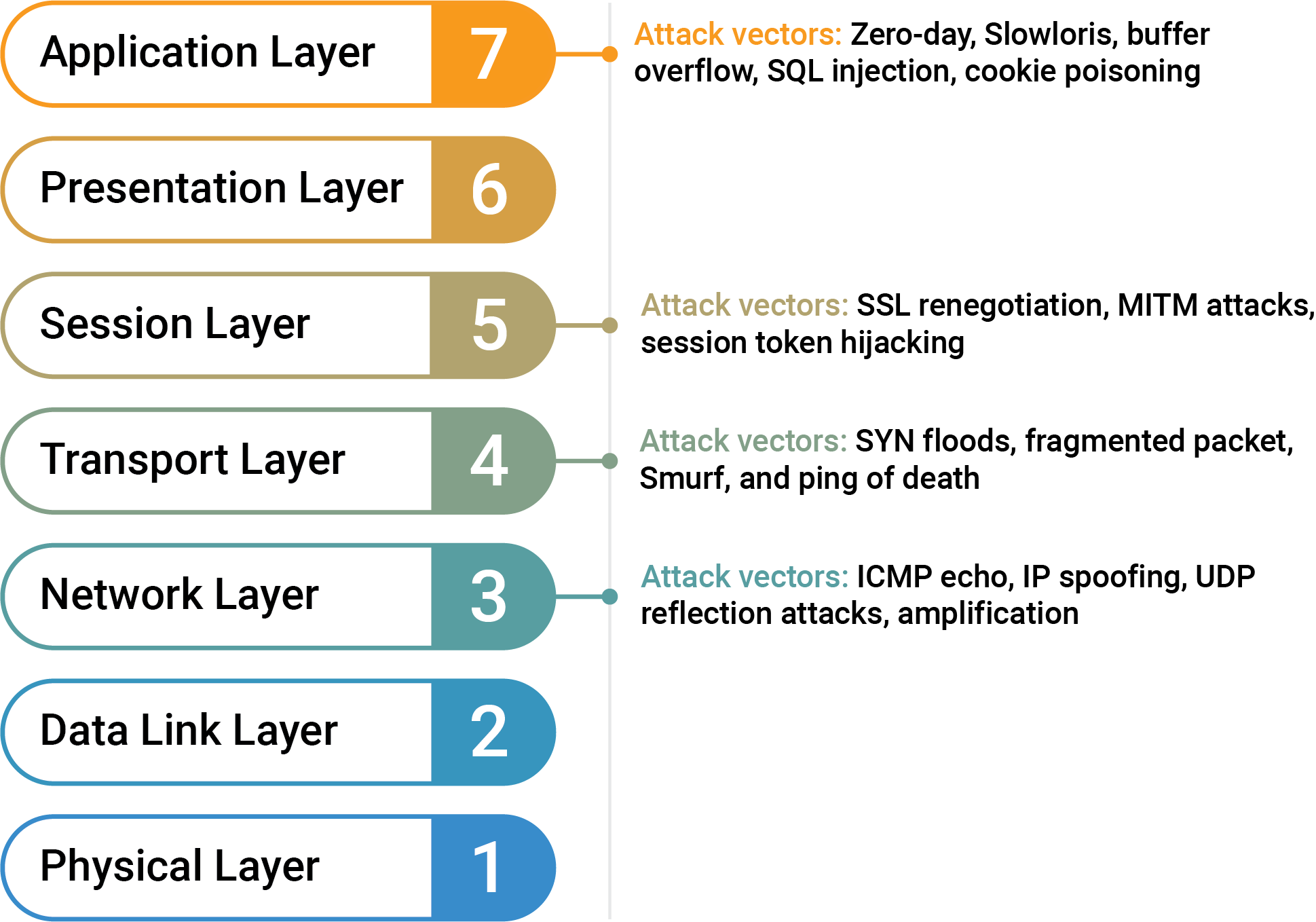

Cloud Firewalls on Akamai Cloud is a Layer 3/4 stateless packet filter designed for simplicity and performance. It allows users to specify rules that allow or deny traffic based on source IP, destination port, and protocol (TCP, UDP, ICMP, and IPEncap). The Cloud Firewalls service does not inspect application-layer traffic; however, it is effective at managing access to services based on IP and port-level rules.

What’s Not Directly Portable

Since Cloud Firewalls doesn’t currently support Layer 7 inspection, features such as pattern matching, geographic filtering, and rate limiting cannot be replicated natively. These must be implemented at the application level using reverse proxies like NGINX or other third-party services.

Before You Begin

Complete the following prerequisites prior to following the steps in this guide.

1. Follow our Get Started guide to create an Akamai Cloud account if you do not already have one.

2. Create a personal access token using the instructions in our Manage personal access tokens guide.

3. Install the Linode CLI using the instructions in the Install and configure the CLI guide. See our API reference for comprehensive documentation of Linode CLI functionality.

4. You need a Google Cloud project with a user or service account that has permissions to list, view, and modify VPC firewall rules.

5. Ensure the Google Cloud CLI is installed locally and authenticated (via gcloud auth login) for the correct project (via gcloud config set project).

Example Environment Used in This Guide

The example used throughout this guide involves a GCP VM instance on a network with traffic governed by a Google Cloud NGFW. The VM instance is configured for several services:

• Web traffic handled by NGINX on ports 80 and 443
• PostgreSQL database on port 5432
• SSH on port 22
• Redis on port 6379

The Google Cloud NGFW is configured with inbound rules to restrict access to known IP addresses.

The equivalent setup on Akamai Cloud uses a single Linode instance running the same services. The Cloud Firewalls service is used to recreate the access controls previously handled by the Google Cloud NGFW.

Document your Current Configuration

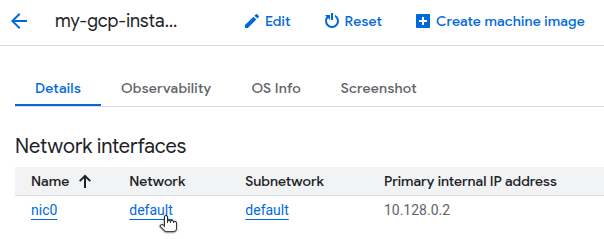

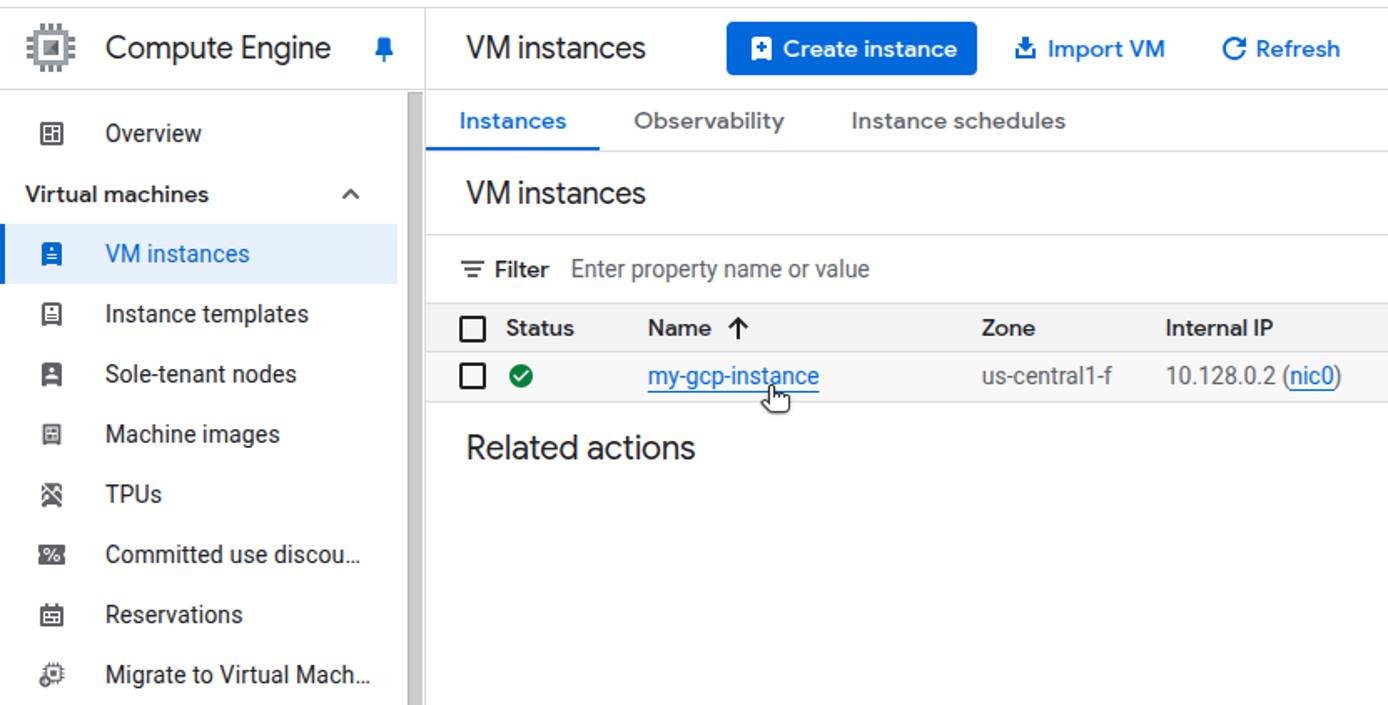

Before making changes, it’s essential to fully understand your existing GCP VM instance and Google Cloud NGFW configuration. Document and template how traffic flows to your Compute Engine virtual machine by noting which ports are open and which services are bound to each port. This can help you set up equivalent access controls using Cloud Firewalls.

Review Google Cloud NGFW Rules

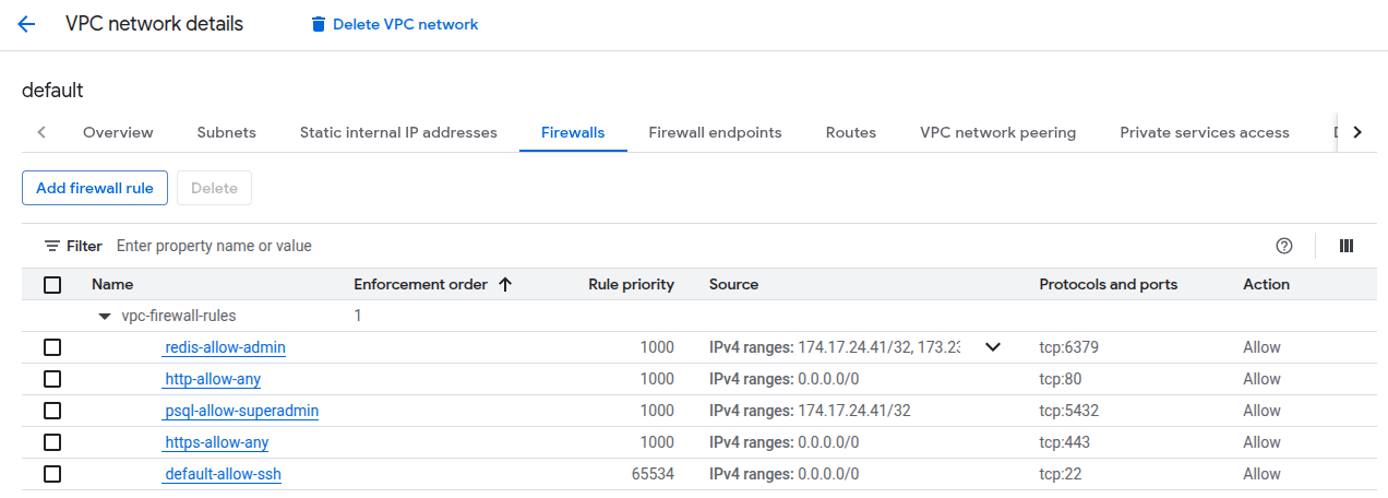

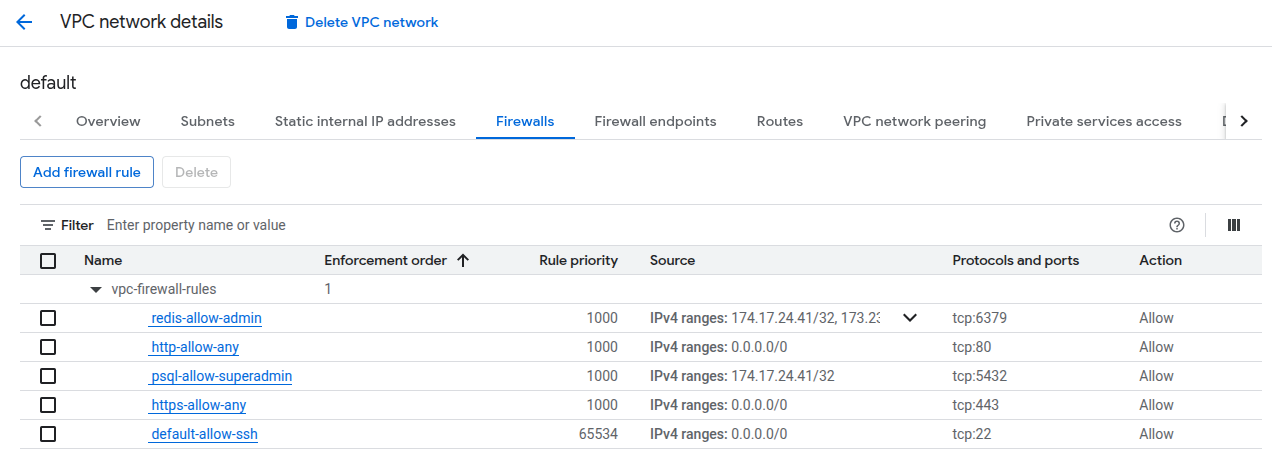

Use the Google Cloud Console or gcloud CLI to export or list your NGFW rules.

gcloud compute firewall-rules list \
    --format="json(name,description,allowed,sourceRanges)"

[
  {
    "allowed": [
      {
        "IPProtocol": "tcp",
        "ports": [
          "22"
        ]
      }
    ],
    "description": "Allow SSH from anywhere",
    "name": "default-allow-ssh",
    "sourceRanges": [
      "0.0.0.0/0"
    ]
  },
  {
    "allowed": [
      {
        "IPProtocol": "tcp",
        "ports": [
          "80"
        ]
      }
    ],
    "description": "Allow any IP to port 80",
    "name": "http-allow-any",
    "sourceRanges": [
      "0.0.0.0/0"
    ]
  },
  {
    "allowed": [
      {
        "IPProtocol": "tcp",
        "ports": [
          "443"
        ]
      }
    ],
    "description": "Allow any to port 443",
    "name": "https-allow-any",
    "sourceRanges": [
      "0.0.0.0/0"
    ]
  },
  {
    "allowed": [
      {
        "IPProtocol": "tcp",
        "ports": [
          "5432"
        ]
      }
    ],
    "description": "Only allow superadmin to port 5432",
    "name": "psql-allow-superadmin",
    "sourceRanges": [
      "174.17.24.41/32"
    ]
  },
  {
    "allowed": [
      {
        "IPProtocol": "tcp",
        "ports": [
          "6379"
        ]
      }
    ],
    "description": "Allow to port 6379 from specific IPs",
    "name": "redis-allow-admin",
    "sourceRanges": [
      "174.17.24.41/32",
      "173.230.174.213/32"
    ]
  }
]

The example in this guide only has inbound rules, with traffic allowed for specific IP addresses. The inbound permissions for the example in this guide are diagrammed below:

Plan Your Rule-Mapping Strategy

After documenting your Google Cloud setup, plan how to translate those rules using the Cloud Firewalls syntax and feature set.

In this example, core services are exposed on ports 22, 80, 443, 5432, and 6379. The Google Cloud NGFW allows access to certain ports (5432 and 6379) only from an approved IP allowlist, while traffic from any source can reach ports 22, 80, 443. These rules must be recreated on Akamai Cloud to maintain equivalent protection.

It can be helpful to create a side-by-side comparison, mapping Google Cloud NGFW rules to their Cloud Firewalls equivalents. For example, a rule that allows PostgreSQL traffic (TCP 5432) from a specific IP should be represented as a Cloud Firewalls rule allowing TCP traffic on port 5432 from that same IP.

Back up Your Existing Configuration

Before disabling or removing Google Cloud resources, create a backup of all relevant configuration data.

Export your existing Google Cloud NGFW rules by running the following command and saving the output to a file:

gcloud compute firewall-rules list --format=json > firewall-rules.json

Create Equivalent Rules with Cloud Firewalls

Once planning and documentation are complete, begin building your new network firewall configuration in Akamai Cloud.

Cloud Firewalls rules can be managed through the Cloud Manager web interface or via the Linode CLI. This section demonstrates both methods.

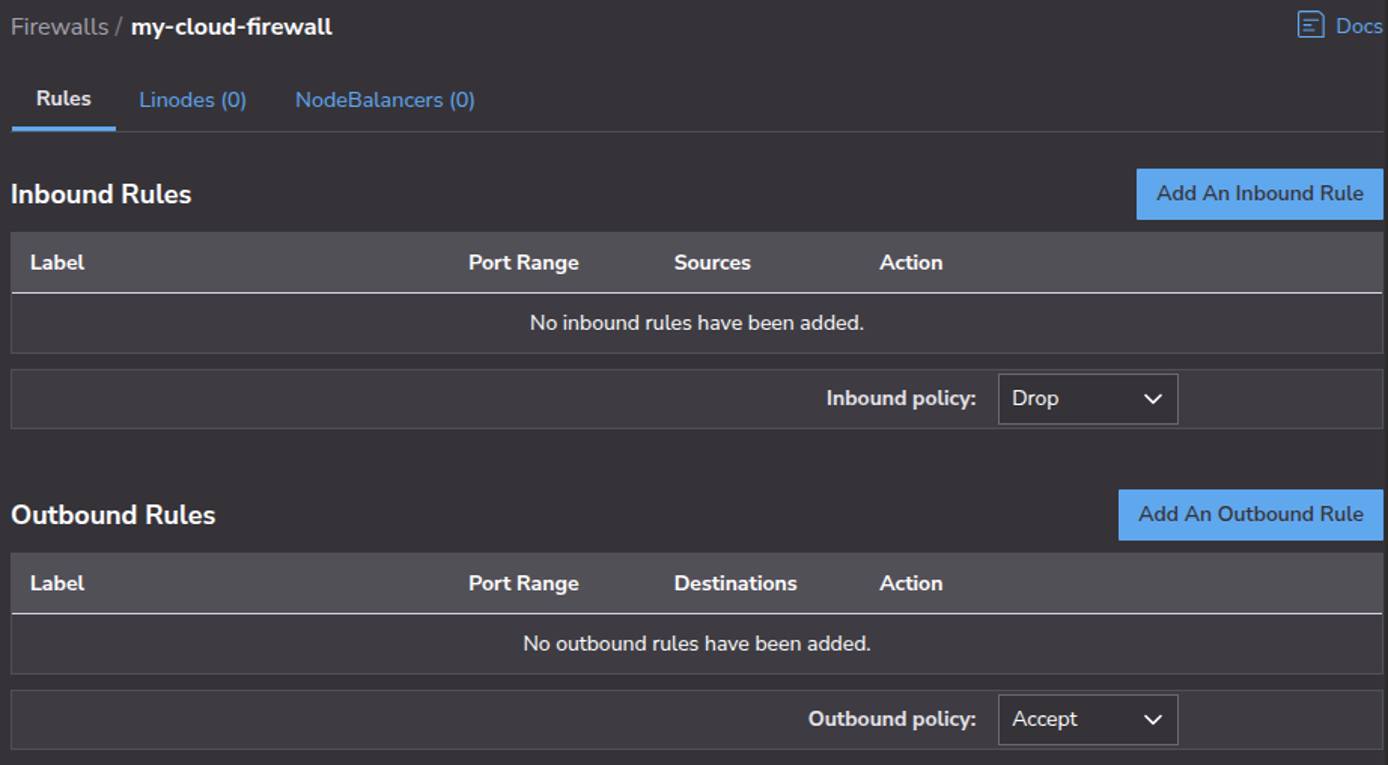

Enable Cloud Firewalls

linode-cli firewalls create \
    --rules.inbound_policy DROP \
    --rules.outbound_policy ACCEPT \
    --label "CLOUD_FIREWALL_LABEL"

┌---------┬--------------------┬---------┬---------------------┐
│ id      │ label              │ status  │ created             │
├---------┼--------------------┼---------┼---------------------┤
│ 2420060 │ my-cloud-firewall  │ enabled │ 2025-04-28T17:42:45 │
└---------┴--------------------┴---------┴---------------------┘

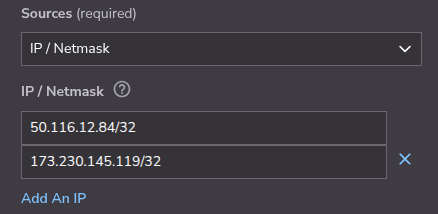

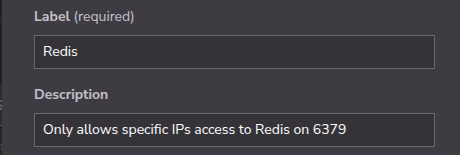

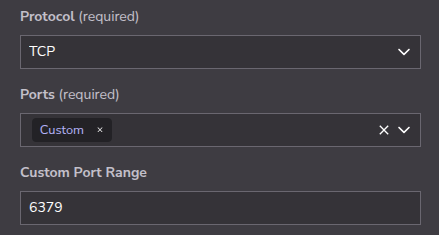

Recreate Rules

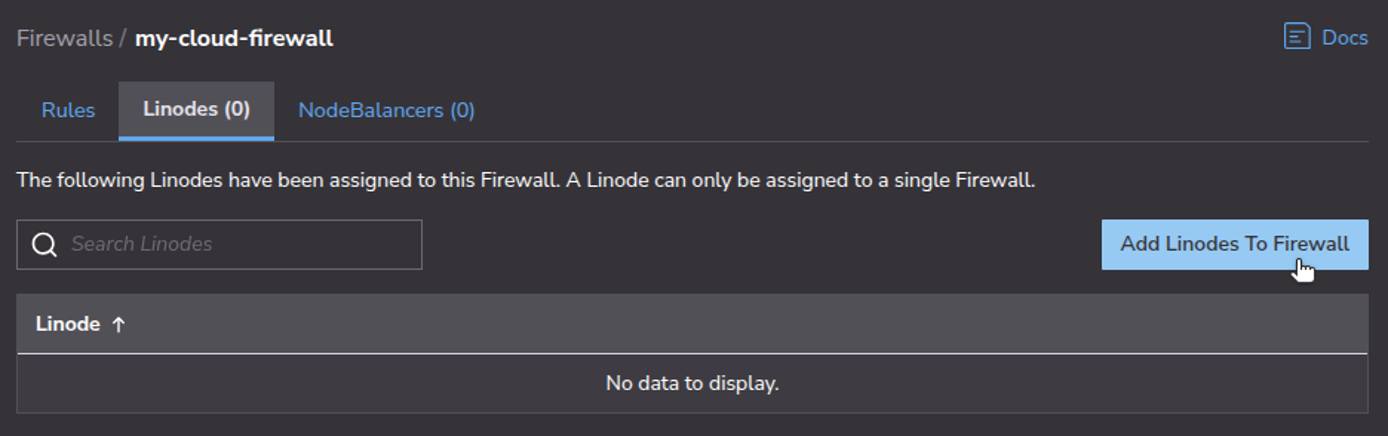

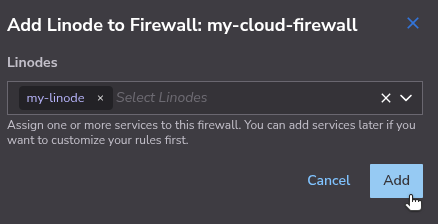

Attach Instances to the Firewall

You can attach multiple Linodes or NodeBalancers to the Cloud Firewall. Note that inbound and outbound rules apply to Linode instances, whereas only inbound rules apply to NodeBalancers.

See our additional migration documentation for guidance on migrating other services – such as compute instances – to Akamai Cloud.

Test and Validate Your Configuration

After applying rules to your Cloud Firewalls, confirm that they behave as expected under real traffic conditions. Note that your firewall configurations may require different testing methods than those listed in this section.

Simulate Expected and Blocked Traffic

From an IP on the allowlist, test access for each service and confirm that the connection succeeds to your instance’s endpoint. Use ssh to test connections from any IP address.

In all examples, replace SERVER_IP_ADDRESS with the IP address of the instance assigned to your Cloud Firewall (e.g. 172.236.228.122).

1. Use curl to test HTTP traffic through NGINX:

   cURL HTTP Connection Attempt

   curl -I http://SERVER_IP_ADDRESS

   HTTP/1.1 200 OK
   Server: nginx/1.24.0 (Ubuntu)
   Date: Mon, 28 Apr 2025 21:00:32 GMT
   Content-Type: text/html
   Content-Length: 615
   Last-Modified: Mon, 28 Apr 2025 20:58:01 GMT
   Connection: keep-alive
   ETag: "680febd9-267"
   Accept-Ranges: bytes

2. Similarly, you can also use curl to test HTTPS traffic through NGINX:

   cURL HTTPS Connection Attempt

   curl -I https://SERVER_IP_ADDRESS

   HTTP/1.1 200 OK
   Server: nginx/1.24.0 (Ubuntu)
   Date: Mon, 28 Apr 2025 21:02:02 GMT
   Content-Type: text/html
   Content-Length: 615
   Last-Modified: Mon, 28 Apr 2025 20:58:01 GMT
   Connection: keep-alive
   ETag: "6434bbbe-267"
   Accept-Ranges: bytes

   Note

   If you generated a self-signed certificate, skip certificate verification by adding the -k flag:

   curl -Ik https://SERVER_IP_ADDRESS

3. Attempt to connect to the PostgreSQL server with the psql client from an allowed IP address, replacing PSQL_PORT (e.g. 5432), PSQL_USERNAME (e.g. testuser), and PSQL_DATABASE (e.g. testdb):

   Successful PostgreSQL Connection Attempt

   psql --host SERVER_IP_ADDRESS \
       --port PSQL_PORT \
       --username PSQL_USERNAME \
       --dbname PSQL_DATABASE \
       --password

   Password: ********
   psql (17.2 (Ubuntu 17.2-1.pgdg20.04+1), server 16.8 (Ubuntu 16.8-0ubuntu0.24.04.1))
   SSL connection (protocol: TLSv1.3, cipher: TLS_AES_256_GCM_SHA384, compression: off, ALPN: none)
   Type "help" for help.

   testdb=#

4. In contrast, if you attempt to connect to the PostgreSQL server with the psql client from an IP address not allowed through the Cloud Firewall rules, the execution hangs after prompting for the password:

   Blocked PostgreSQL Connection Attempt

   psql --host SERVER_IP_ADDRESS \
       --port PSQL_PORT \
       --username PSQL_USERNAME \
       --dbname PSQL_DATABASE \
       --password

   Password: ********

5. Attempt to connect to Redis with redis-cli from an allowed IP address, replacing REDIS_PORT (e.g. 6379):

   Successful Redis Connection Attempt

   redis-cli -h SERVER_IP_ADDRESS -p REDIS_PORT

   The result should be similar to the following:

   172.236.228.122:6379> INFO Server
   # Server
   redis_version:7.0.15
   …
   executable:/usr/bin/redis-server
   config_file:/etc/redis/redis.conf
   io_threads_active:0

6. Now attempt to connect to Redis with redis-cli from an IP address that is not on the allowlist:

   Blocked Redis Connection Attempt

   redis-cli -h SERVER_IP_ADDRESS -p REDIS_PORT

   The connection attempt simply hangs:

Log and Monitor Behavior

The Cloud Firewalls service does not show per-packet or rule-level logging. To verify behavior, rely on logs from the services themselves. For example:

• NGINX access logs, as configured in individual virtual server configuration files, are found in /etc/nginx/sites-available.
• SSH authentication logs are located at (/var/log/auth.log).
• Redis logs are typically found in /var/log/redis/redis-server.log, though this is configurable in /etc/redis/redis.conf.
• PostgreSQL logs are typically found in /var/log/postgresql/, though this is configurable in /etc/postgresql/[PATH-TO-VERISON]/postgresql.conf.

Connection and activity logs from these services can help to confirm whether traffic is reaching them as expected.

Monitor Post-Migration Performance

Ongoing monitoring helps identify any overlooked configuration issues or unexpected traffic patterns. Continue observing application logs and metrics post-migration. Make sure services are available to intended users and there are no spikes in error rates or timeouts.

If legitimate traffic is being blocked or malicious traffic is being allowed, refine your Cloud Firewalls rules. It may take a few iterations and troubleshooting to achieve parity with your original Google Cloud NGFW behavior.

Finalize Your Firewall Migration

Once you’ve validated the new firewall configuration, clean up legacy resources and update internal references:

• Find components that were connecting with your GCP Compute Engine VM instance.
• Create equivalent rules with Cloud Firewalls to allow traffic from legitimate components.
• Remove the Google Cloud NGFW rules.
• Remove the GCP Compute Engine VM instance.

Update runbooks, internal network diagrams, and configuration documentation to reflect the new firewall architecture based on Cloud Firewalls.

More Information

You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.

• Google Cloud NGFW Documentation
• Google Cloud CLI Commands Related to NGFW Rules
